Roof Hatches

The Access Panel Company has been manufacturing roof hatches for over ten years. From small individual hatches for maintenance and inspection, we also manufacture larger hatches for access to machinery and plant that may have to be lifted in and out of industrial buildings. We manufacture hatches with integrated upstands or to minimise site work, to fit over an existing kerb. Most of our hatches can simply be lifted into position, screwed down and weathered. There is no site assembly work except to add a padlock when finished. We recommend an electric operation for larger or frequently used hatches. For example in domestic use to access roof gardens. We supply hand held controllers so operation is as simple as opening an electric garage door.

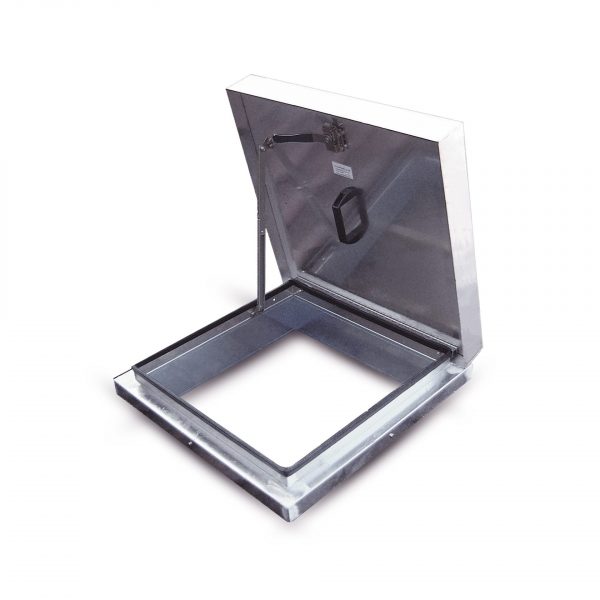

Roof-Hatch-Metal-Door

Gallery

Product Features

 Thick rubber compressible seal between lid and frame.

Insulated to meet a Building Regulation target of
0.35 u-value.

Durable powder coated finish in any RAL colour. Natural aluminium as standard.

Lock clutch fitted as standard so the outside can be padlocked but still opened from the inside.

Standard Sizes

  • 750 x 750 mm
  • 900 x 750 mm
  • 900 x 900 mm
  • 1200 x 900 mm
  • 1200 x 1200 mm

Made to Measure

For bespoke sizes please call our Technical Sales Team. We can change sizes and modify designs to suit your scheme.

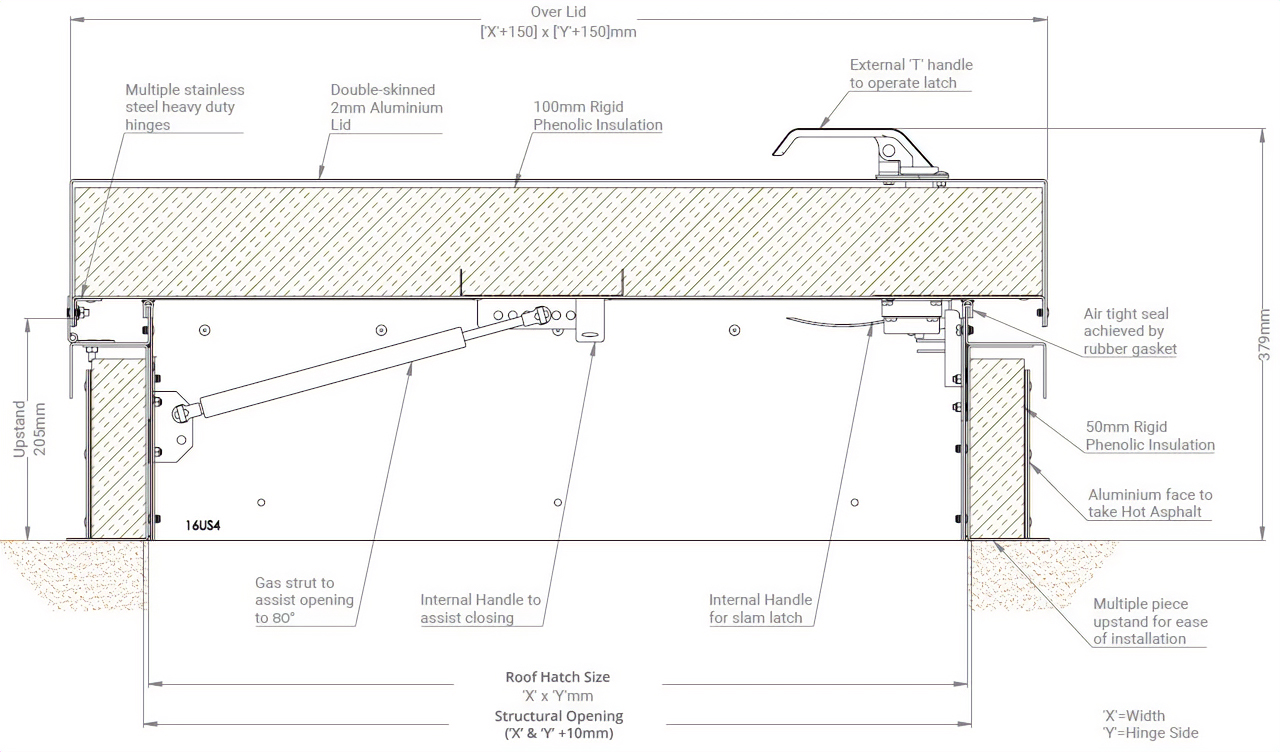

Technical Details

Specifications

  • Supplied as standard with an upstand, also available to fit your own upstand.
  • Manufactured from Aluminium with Stainless Steel options available.

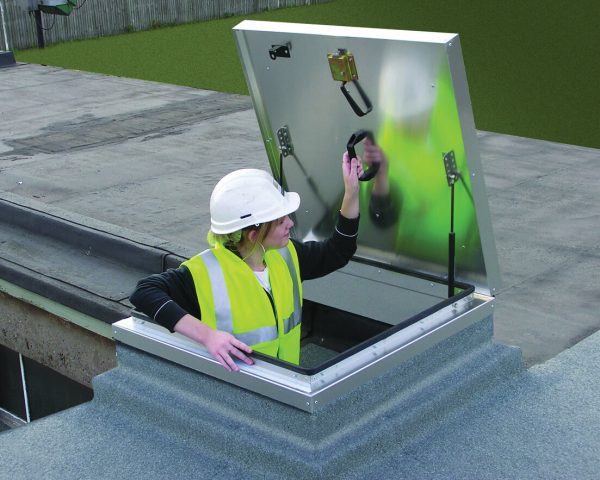

  • Suitable for Pitched and Flat Roofs
  • Factory fitted Slam Latch for opening / closing with Hasp for securing with suitable padlock.
  • Factory fitted gas struts to assist opening and closing.

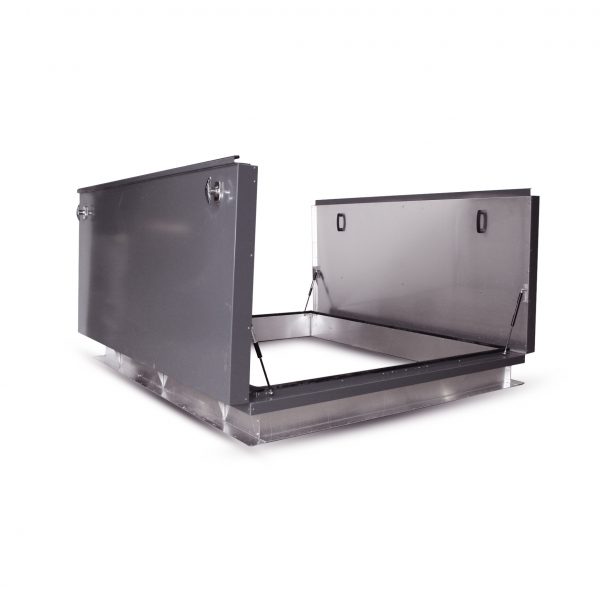

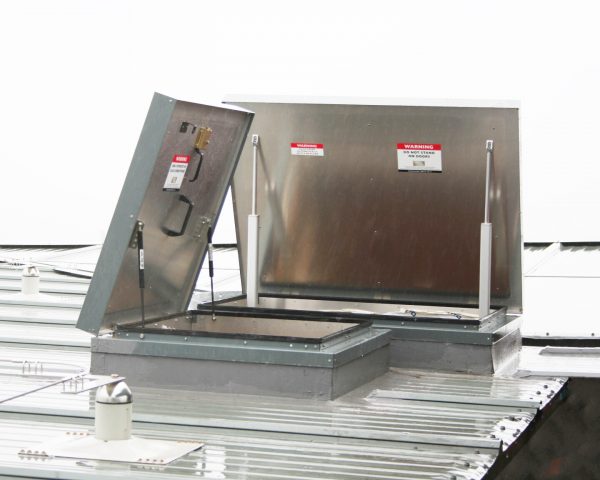

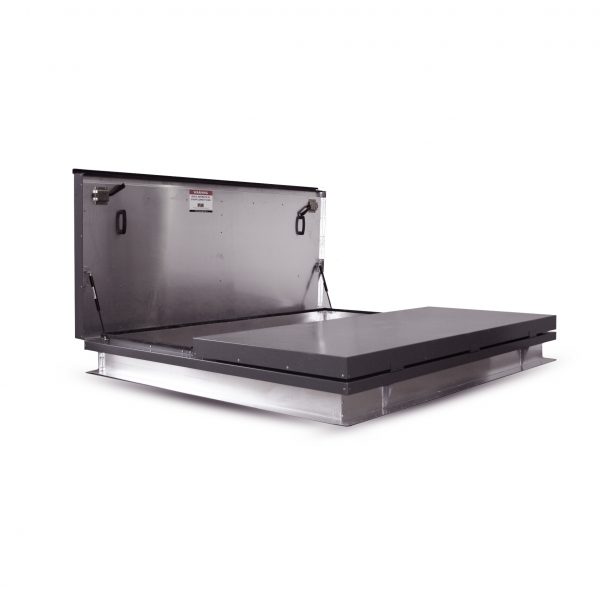

  • Single and double door options available to suit your requirements.
  • Available in mill finish or powder coated inside and out.
  • Electrically operated options available
  • We recommend the prepared opening be 10mm larger than the panel ordered.

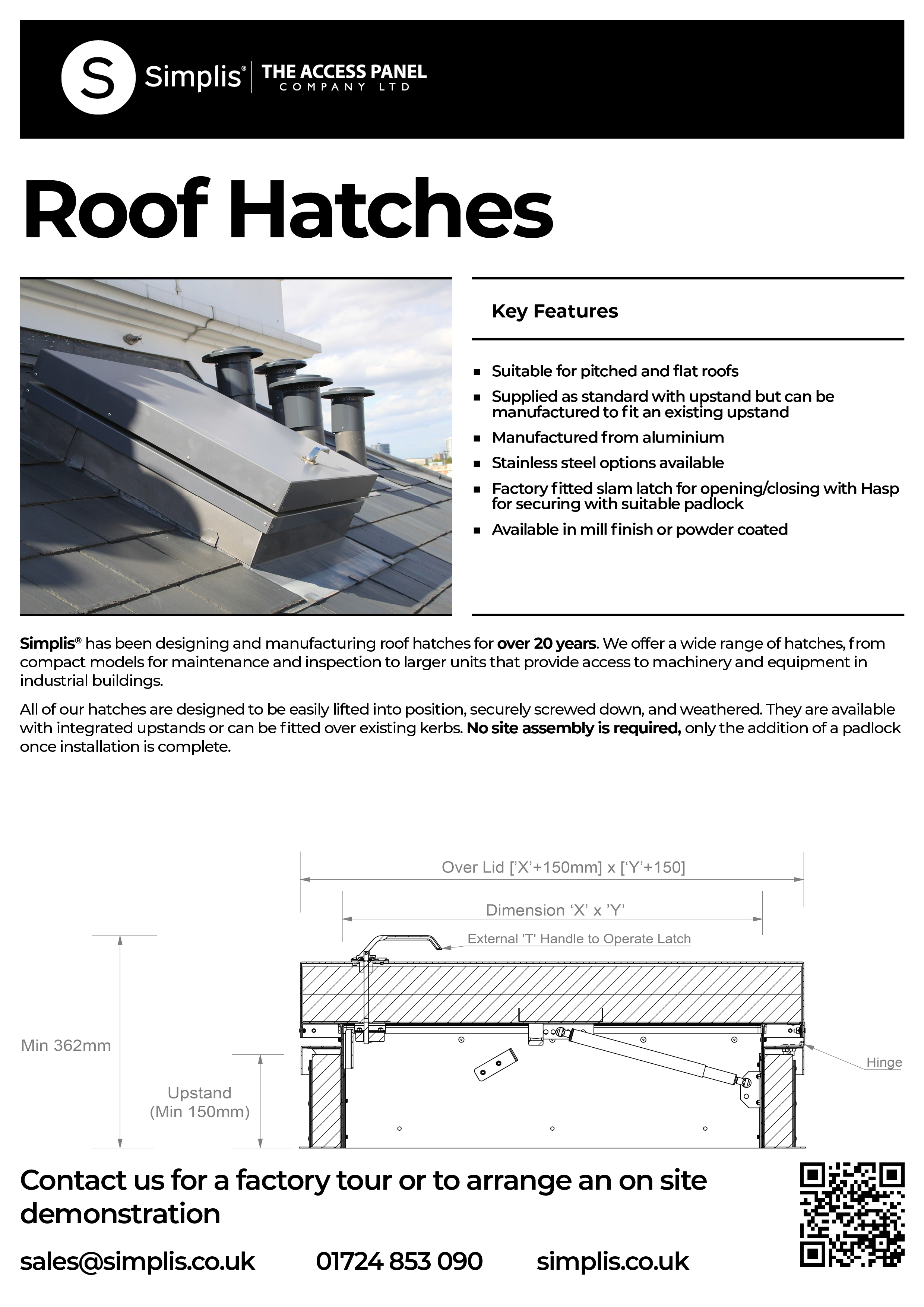

Resources
