Christo Riser Doors
The Most Important Door in the Building

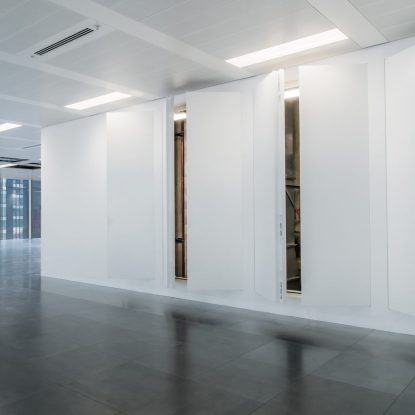

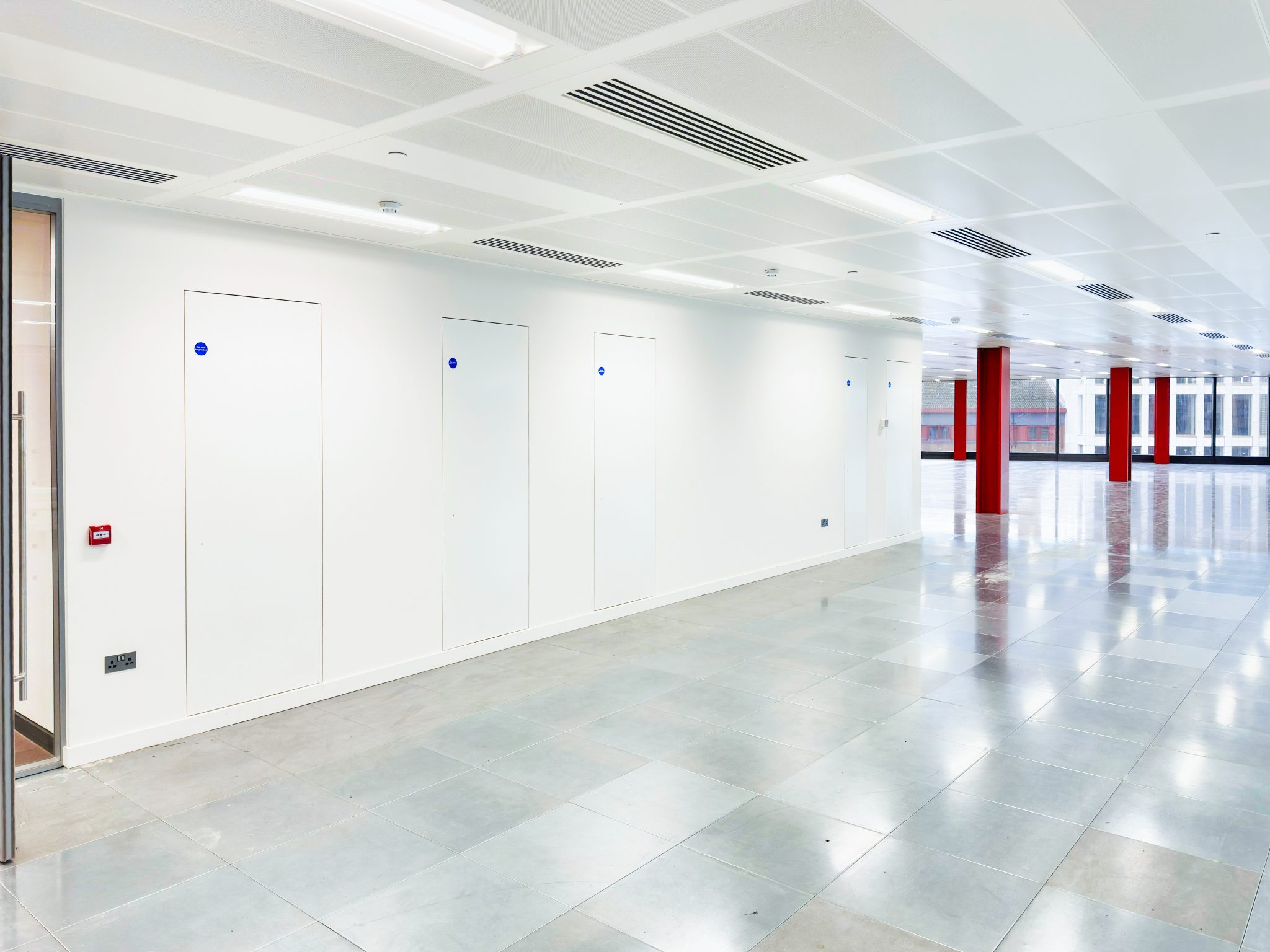

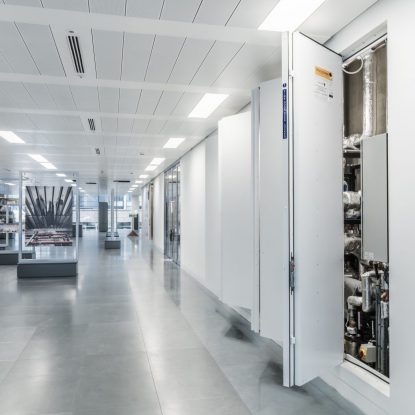

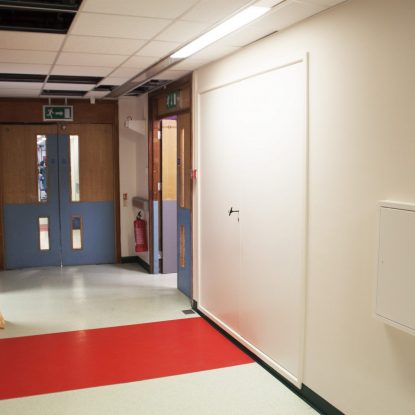

Designed and fire tested specifically for use in riser shafts running through larger buildings. The Access Panel Company fire rated Christo Riser Doors provide protection to riser openings preventing fire escaping from the riser shafts and spreading throughout multi-storey buildings. This is possibly the most important access door in the building for preventing the spread of fire to other floors. Doors up to 2866mm high have been tested guaranteeing accurate levels of protection.
Priced On Request
To make an enquiry, please contact our sales team.
Quick & Easy Fitting

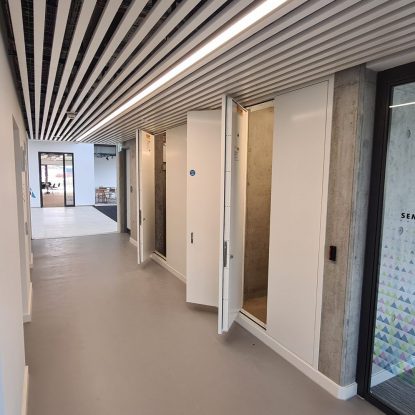

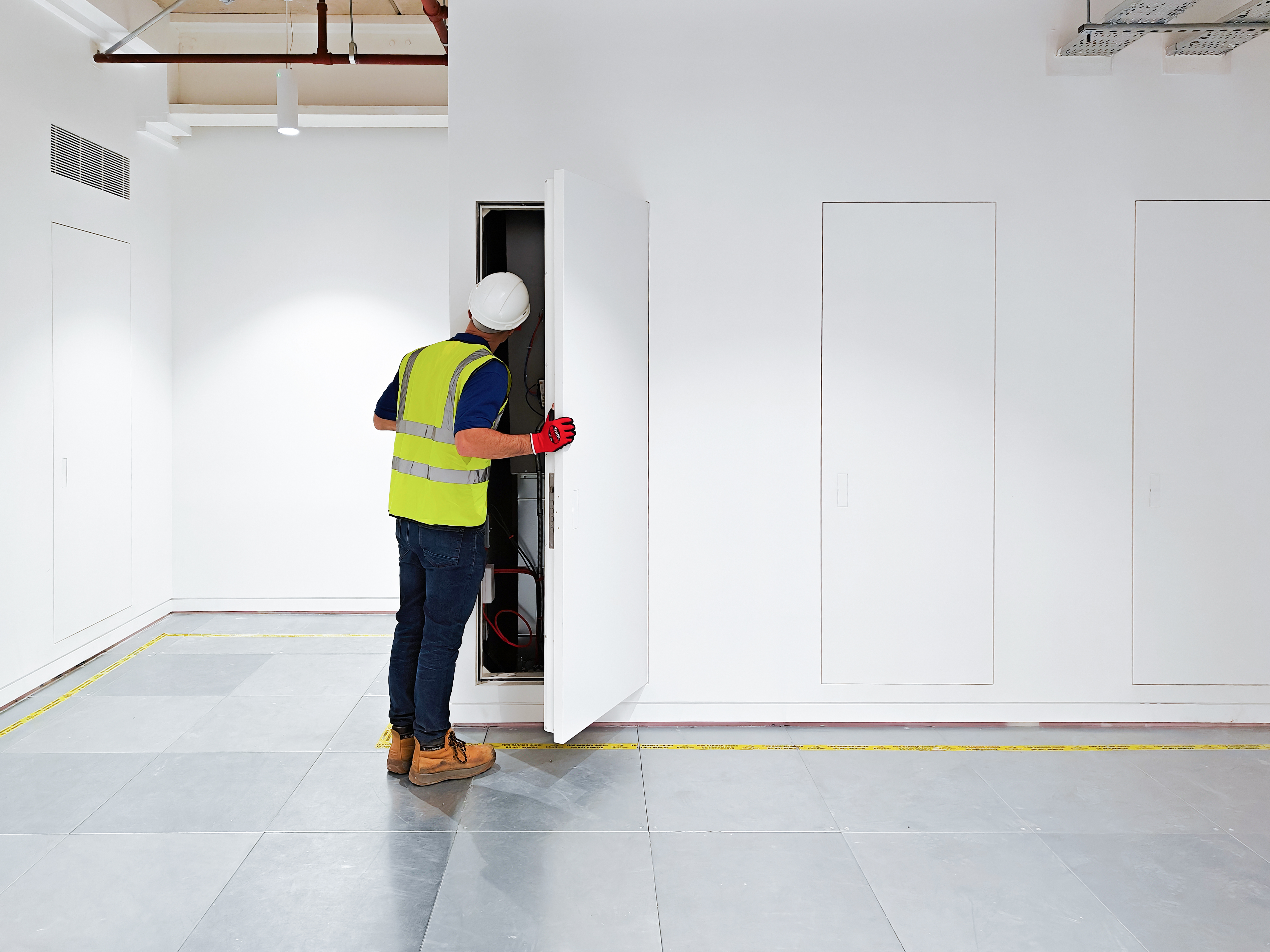

By taking advantage of our unique spring loaded pivot hinging system, installation time is reduced offering significant savings in fitting costs with the advantage of being able to simply remove the doors giving the benefit of a full clear opening when required.
FrameSmart®
- Expanding frame effect
- No mastic application
- Multiple jacking points level and plumb the door
- Bi-directionally fire tested to EW120S
- Eliminates poor aperture operational issues
- 10mm range of adjustment removing the need for packers
- Dramatically reduces install time
- Corner guides to aid accurate aperture preparation
- Double factory fitted fire stopping protection
- Physical fire stopping barrier & Intumescent protection built-in as standard
Fire Rated
Available with up to 2 hours fire rating. Fire testing undertaken independently meeting both EN and BS standards in UKAS approved test laboratories. Certification available upon request.
Air-Tightness
| Pressure (Pa) | Air Leakage Rate (m³/m/h) (Positive Chamber) | Air Leakage Rate (m³/m/h) (Negative Chamber) |
|---|---|---|
| 25 | 1.77 | 2.06 |
Acoustic rated
UKAS-accredited independent laboratory tested to a reduction of 47 dB Rw to BS EN ISO 10140-2:2010.
This is a real-life equivalent of reducing the sound of a vacuum cleaner to the same noise your computer is making.
The SLIK Invisible Keyhole System
Our patented SLIK ‘Spring Loaded Invisible Keyhole’ system seamlessly blends the panel surface across the face of the keyhole making it almost invisible.
The keyhole cover is pushed aside as the key is inserted into the lock and springs back into place when the key is withdrawn.
The SLIK removes the need for keyhole caps that can go missing or become grubby over time.
See all of our lock options:
Frame Options

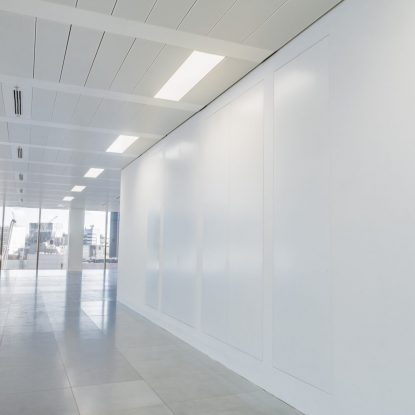

With 4 frame types, we can accommodate any wall finish. The Concealed beaded frame (below right), is the most popular & used where the wall has yet to be finished. For finished walls, the Picture frame option is available or specify no flange or delete the flange to the threshold only. Ask for a primer paint finish and site emulsion so the door blends into the wall. All options are fully fire tested.
Picture Frame
Concealed Beaded Frame
Environmental Product Declaration
The Christo Riser Door doesn’t just stop fire in its tracks – it now comes with verified Environmental Product Declaration (EPD) data, proving its performance is as sustainable as it is critical.
- ✓ Independently verified environmental data
- ✓ Supports sustainable construction
- ✓ Informs responsible specification choices
Join us in building a safer, greener future.
Sizes
All Riser Doors are manufactured to order.To ensure fire-compliant leaf sizes and configurations please call our Technical Sales Team before specifying. Lead times for riser doors vary from 12-25 working days depending on quantity.
