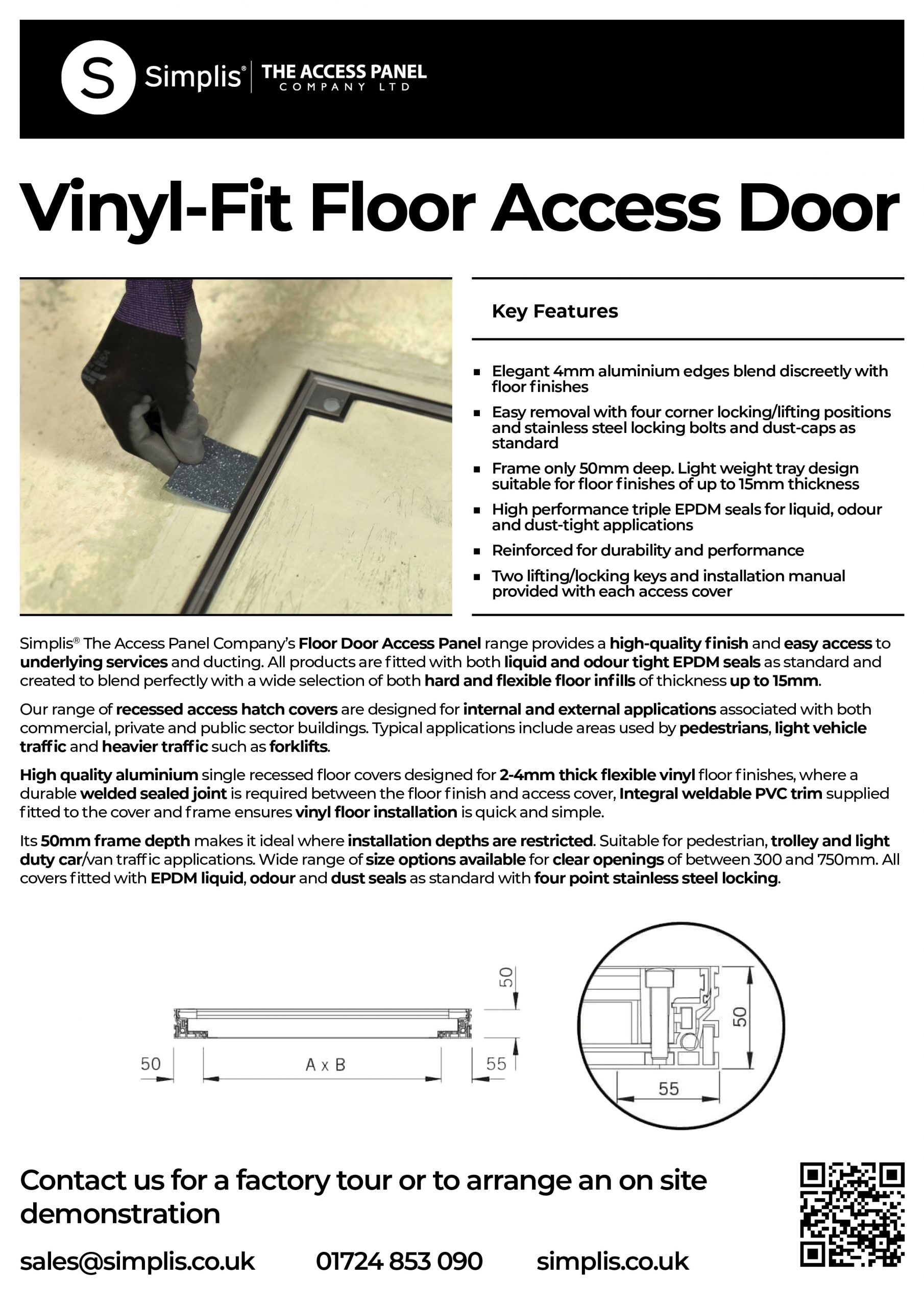

Vinyl-Fit Floor Access Door Data Sheet
High Quality Floor Access
A single recessed aluminium floor cover for vinyl finishes 2 to 4mm thick, where the floor needs to be welded into a sealed joint across the cover. Integral weldable PVC trim is fitted to both the cover and the frame, so the vinyl goes down quickly. Suitable for pedestrian, trolley and light duty car/van traffic indoors.
Benefits of Vinyl-Fit
- Integral weldable PVC trim fitted to cover and frame for 2-4mm vinyl flooring
- Durable welded sealed joint between the floor finish and access cover
- Elegant 4mm aluminium edges blend discreetly with floor finishes
- High performance triple EPDM seals for liquid, odour and dust-tight applications
- Frame only 50mm deep - ideal where installation depths are restricted
Ideal Applications
The Vinyl-Fit Floor Access Door is ideal for shopping centres, offices, hospitals, schools, leisure facilities and swimming pools. For other floor types, see the Multi-Fit Floor Access Door.
Sizes
- 200 x 200
- 300 x 300
- 450 x 450
- 600 x 450
- 600 x 600
- 750 x 600
Sizes given height × width, in mm.

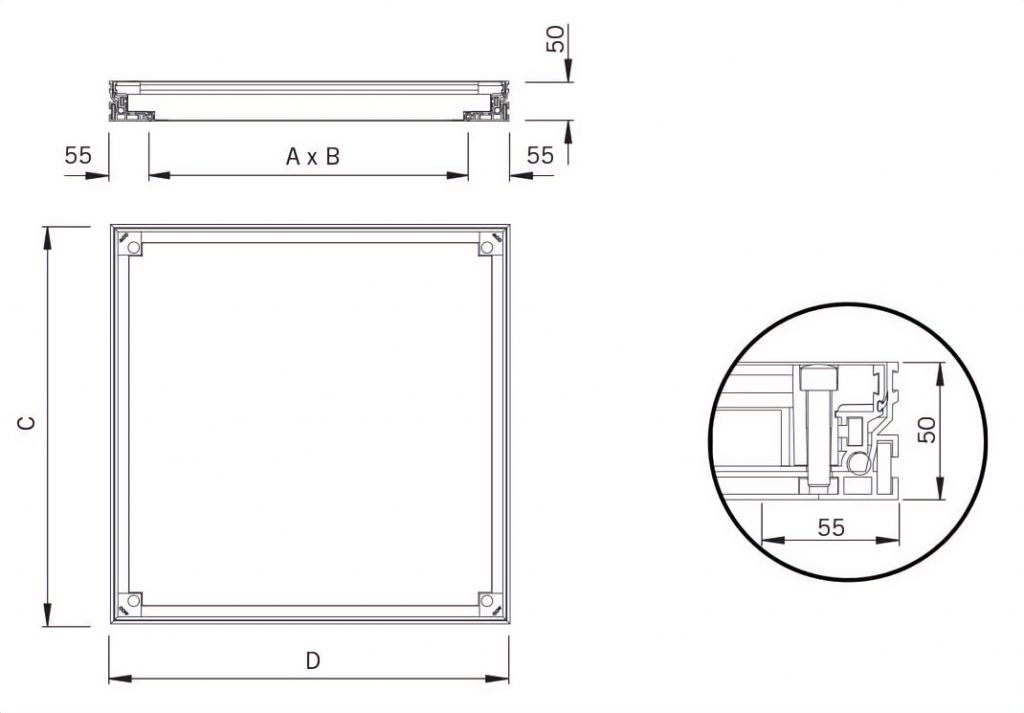

Cross Section Illustration
A x B is the clear opening. C and D are the overall frame, which is the clear opening plus 110mm, 55mm on each side. Standard sizes are listed as the clear opening.
Bespoke sizes are available. Please contact our Technical Sales Team for current lead times and more information.
Specification
| Door tray & frame | High quality aluminium with elegant 4mm edges. Integral weldable PVC trim fitted to the cover and the frame for 2-4mm thick vinyl flooring. |
|---|---|
| Lock | Four point stainless steel locking with four corner locking/lifting positions, stainless steel locking bolts and dust-caps as standard. Two lifting/locking keys provided with each cover. |
| Profile depth | 50mm frame depth |
| Seals | High performance triple EPDM seals for liquid, odour and dust-tight applications. |
| Load rating | FACTA class AA. Vehicles up to 5 tonnes gross laden weight, pneumatic tyres only. |
| Availability | Standard sizes below for clear openings from 200mm to 750mm. Bespoke sizes available. |
Resources
Vinyl-Fit Recessed Floor Access Door Installation, Operation and Maintenance Guide
