How does the vinyl finish attach to the floor door?

The Vinyl-Fit Floor Door uses an integral weldable PVC trim fitted to both the cover and the frame. The vinyl flooring - 2-4 mm thick - is heat-welded directly to this trim, creating a durable sealed joint so the floor door surface is continuous with the surrounding floor.

What is the size range?

Standard sizes: 300x300 mm, 450x450 mm, 600x450 mm, 600x600 mm, and 750x600 mm. Bespoke sizes are also available - call the technical sales team.

How is the floor door opened?

With a lifting/locking key set supplied with each cover. The key lifts the door from its frame for access and locks it back down securely when closed.

Can it be used in high-traffic areas?

Yes - the aluminium construction and recessed tray are designed for commercial floor traffic. Check the load specification for your specific size and application.

Can I order a non-standard size?

Yes - call the technical sales team. All floor doors can be manufactured to bespoke dimensions.

Vinyl-Fit Floor Door

From: £371.93

Specifically designed to accept a vinyl finish.

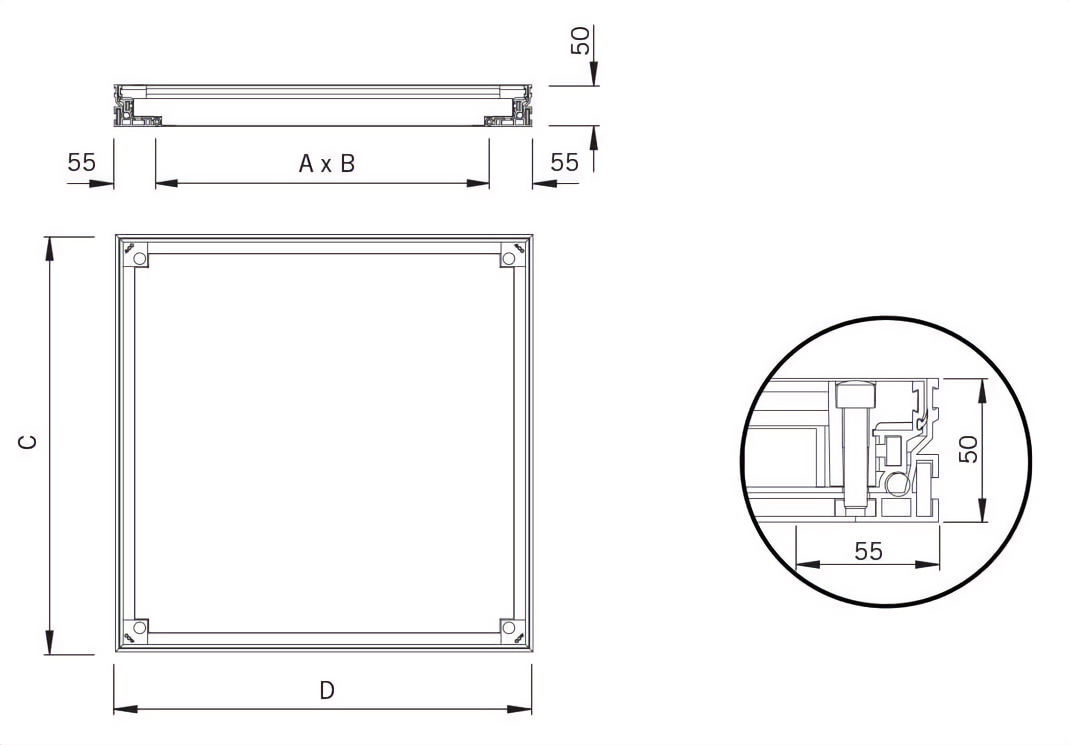

Please note: The sizes listed below are the dimensions of the clear opening.

Vinyl-Fit Floor Door

From: £371.93

Made in Britain

Seen it cheaper? We price match equivalent products. If you have found the same specification elsewhere for less, call us.

Call 01724 853090

Size

Clear

I confirm that the size selected is for the clear opening. *

Laying vinyl over a floor access point is where most floor doors fall short. The Vinyl-Fit Floor Door is specifically engineered to accept a vinyl finish via an integral weldable PVC trim, so the floor reads as one continuous surface. Available in standard sizes from 300×300 mm up to 750×600 mm, with bespoke sizes available.

Specifications

1000 x 1000 mm | 1000 x 600 mm | 1000 x 800 mm | 1200 x 600 mm | 200 x 200 mm | 300 x 300 mm | 400 x 400 mm | 450 x 450 mm | 500 x 500 mm | 600 x 400 mm | 600 x 450 mm | 600 x 600 mm | 635 x 635 mm | 700 x 700 mm | 750 x 600 mm | 750 x 750 mm | 800 x 600 mm | 800 x 800 mm | 900 x 600 mm | 900 x 900 mm
Please call our Technical Sales Team for more information

: The Vinyl-Fit Floor Door uses an integral weldable PVC trim fitted to both the cover and the frame. The vinyl flooring - 2-4 mm thick - is heat-welded directly to this trim, creating a durable sealed joint so the floor door surface is continuous with the surrounding floor.
: Standard sizes: 300x300 mm, 450x450 mm, 600x450 mm, 600x600 mm, and 750x600 mm. Bespoke sizes are also available - call the technical sales team.
: With a lifting/locking key set supplied with each cover. The key lifts the door from its frame for access and locks it back down securely when closed.
: Yes - the aluminium construction and recessed tray are designed for commercial floor traffic. Check the load specification for your specific size and application.
: Yes - call the technical sales team. All floor doors can be manufactured to bespoke dimensions.
