Fire Rated

Meter Over Box

The Fire Rated Meter Over Box is a retrofit solution for keeping your gas and electrical meters well protected.

Independently tested by a UKAS accredited laboratory the Fire Rated Meter Over Box achieves a 90 minute integrity fire rating. Intumescent seal factory fitted to the rear of the panel ensures that in the case of a fire, gaps are closed and the fire is contained.

Not only is The Fire Rated Meter Over Box simple to fit, but the fixing holes are also concealed within the rear of the box to avoid any unsightly fixing points. Simply fit this using the supplied holes to the inside of the meter cupboard, this can fit over an old or new meter door.

Secure Radial Pin Tumbler Locks fitted as standard to ensure the safety of the contents – other locking options available upon request. With our made to measure service we ensure the right fit for your project. When choosing your size, please note the dimensions refer to the size of the meter box of which it fits over.

Buy Now
Meter Over box closed
Product Features

Durable powder coated finish in any RAL colour. RAL9010 white as standard.

Fire Rated logo

Fire tested for 1 hour to BS476 Part 22 in a wall only.

For Walls

For use in walls.


Can be fitted with various lock options.


Ask for our patented “Spring Loaded Invisible Keyhole”
SLIK System.


Flash over the powder coated surface with 180 grit & emulsion to match the surrounding surface.

Stock Sizes

Made to Measure

For bespoke sizes please call our Technical Sales Team. We can change sizes and modify designs to suit your scheme.

Technical Details

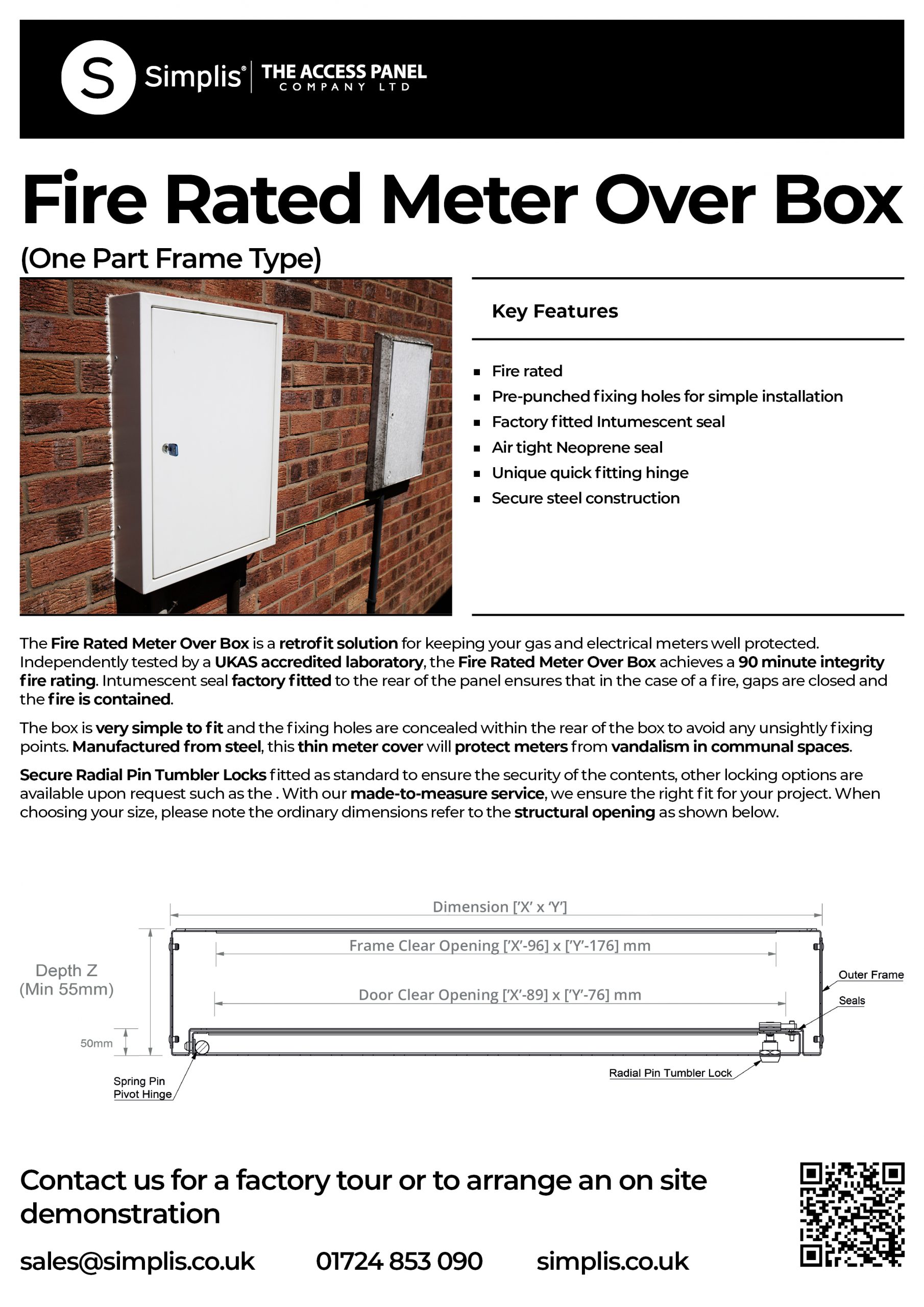

Fire Rated Meter Over Box drawing


  • 90 minute fire rating options available.
  • RPT Radial Pin Tumbler supplied as standard.
  • Removable pin hinge.
  • Prepunched fixing holes for simple installation.
  • Standard 60mm deep. Other depths to meet your requirement upon request.
  • Powder coated white RAL 9010 as standard. Other RAL colours available on request.
Fire Rated Meter Over Box
