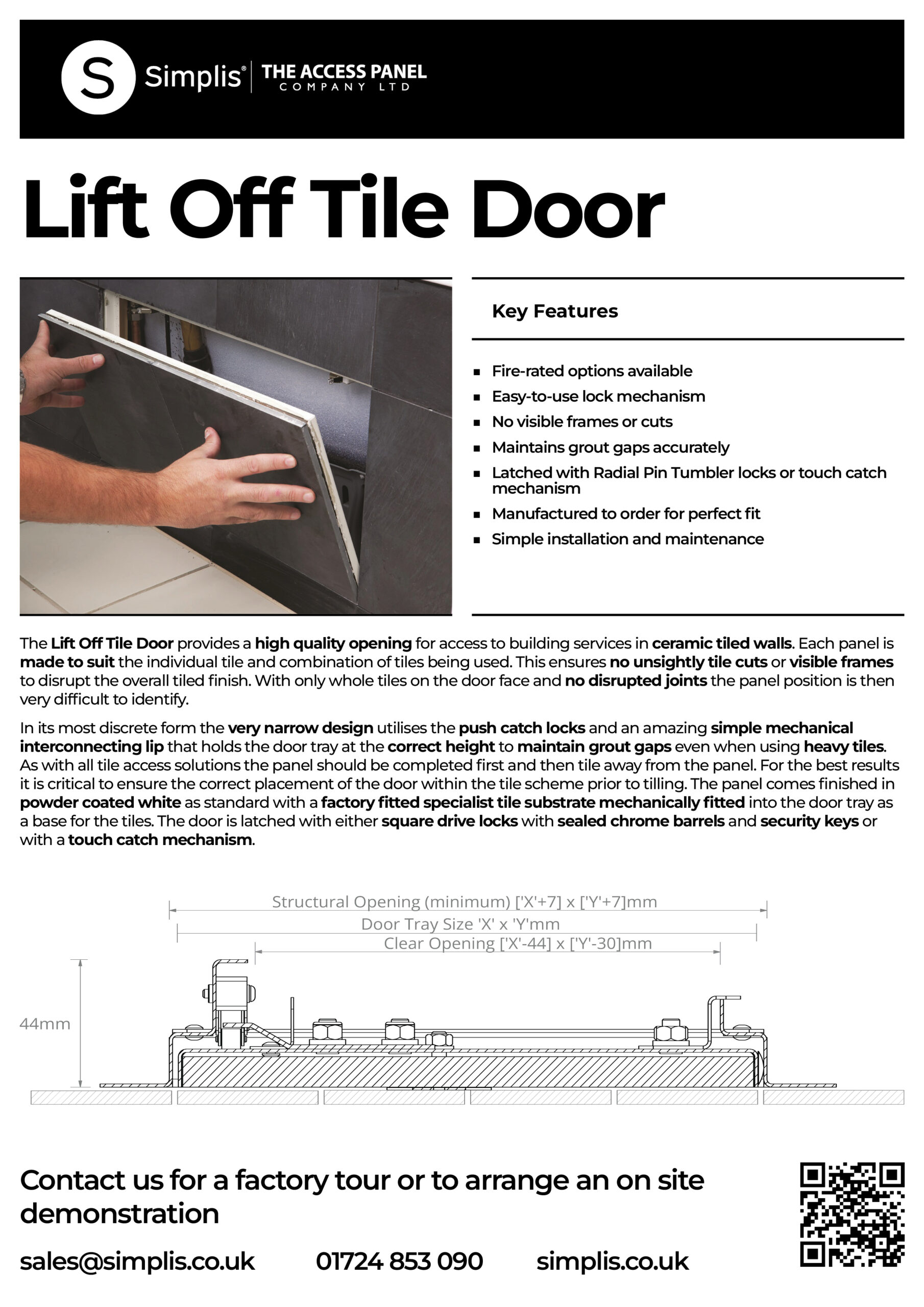

Tile Door
Lift Off

The Lift Off Tile Door provides a high quality opening for access to building services in ceramic tiled walls. Each panel is made to suit the individual tile and combination of tiles being used. This ensures no unsightly tile cuts or visible frames to disrupt the overall tiled finish. With only whole tiles on the door face and no disrupted joints the panel position is then very difficult to identify.

In its most discrete form the very narrow design utilises push catch locks and a simple mechanical interconnecting lip that holds the door tray at the correct height to maintain grout gaps even when using heavy tiles. As with all tile access solutions the panel should be completed first and then tile away from the panel.

For the best results it is critical to ensure the correct placement of the door within the tile scheme prior to tiling. The panel comes finished in powder coated white or black as standard with a factory fitted specialist tile substrate mechanically fitted into the the door tray as a base for the tiles. The door is latched with either square drive locks with sealed chrome barrels and security keys or with a touch catch mechanism.

These doors are made to order, please contact our technical sales team for advice.

Gallery
Product Features

Fire tested for 2 hours to BS476:Part22:1987.

Durable powder coated finish in any RAL colour. RAL9010 white as standard.

Can be fitted with various lock options.

For use in walls.

The frame is completely hidden concealed behind the adjacent tiles.

The door tray is completely concealed behind the tiles.

Sizes

Every tile door is made to fit your exact tile size

To order a tile door please call our technical sales team who will need to know: your tile size, the grout gap width, tile thickness, the size you are trying to achieve, if there are any tiles surrounding the door, the depth available for the frame and which type of lock you require.

Technical Details

Specifications

  • Concealed and Exposed style frames available.
  • Radial Pin Tumbler with Chrome Escutcheon as standard. Other locking options available.
  • Factory fitted removable continuous piano hinge.
  • Prepunched fixing holes for simple installation.
  • Standard 54mm depth.
  • Factory fitted Marmox board to door face to accept tiles on site.
  • We recommend the prepared opening be 10mm larger than the panel ordered.
